EU/Japanese Wheel Hubs

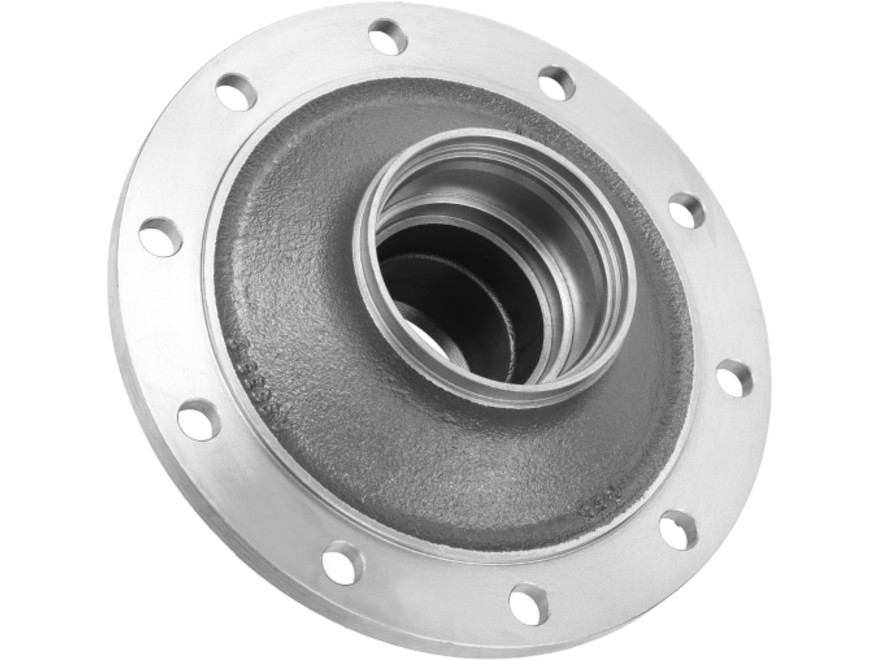

Wheel Hub
R 01.02
| Brand | BPW |
|---|---|
| Rastgar No. | R 01.02 |
| OEM Number | 03.272.30.62.0 |
| Cross Reference | 03.272.30.34.0 , 03.272.30.35.0 , 03.272.30.41.0 |
| Application | HS SERIES 6.5 - 9 TON AXLE |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 110 | 130 | 22 | 191 | 380 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|
| 380 | 335 | 10 | 130 | 110 | 191 | RED OXIDE | NA |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 03.272.30.62.0 |
| Cross Ref. | 03.272.30.41.0 |
| Cross Ref. | 03.272.30.35.0 |
| Cross Ref. | 03.272.30.34.0 |
| Customer Ref. | Samko: 501186 |
| Customer Ref. | Universal Components U.K Limited: A9635 |
| Product Ref. | R 01.02 200007|Wheel Hub Assembly |
| Product Ref. | R 01.02 200007|Wheel Hub |
