EU/Japanese Wheel Hubs

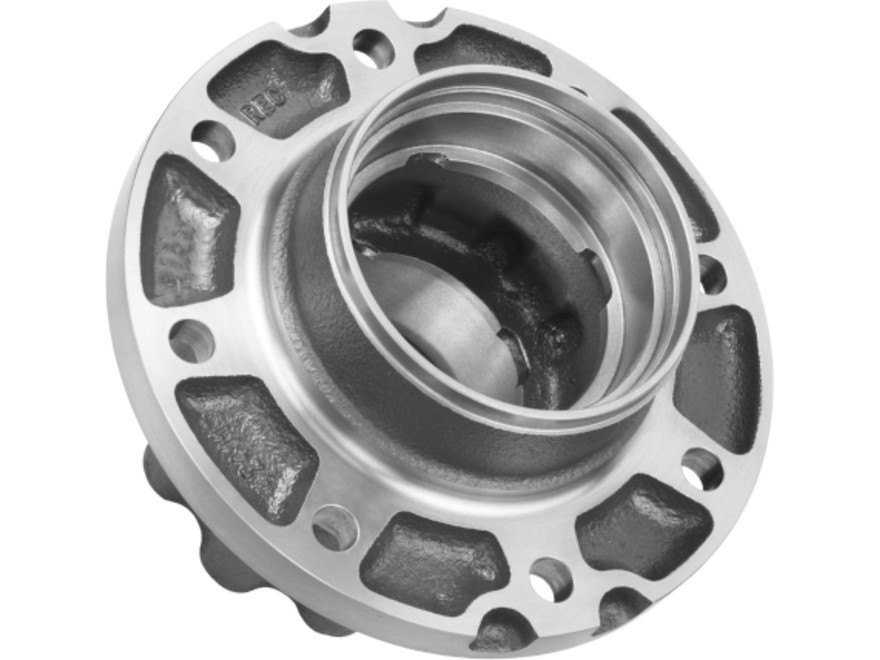

Wheel Hub
R 09.03
| Brand | HINO |
|---|---|
| Rastgar No. | R 09.03 |
| OEM Number | 42411-2231 |
| Application | AK & SG |
| Front / Rear | Rear |
| Material | FCD-400 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 150 | 160 | 22 | 243 | 340 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 340 | 285 | 8 | 160 | 150 | 243 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 42411-2231 |
| Customer Ref. | Hinopak Motors Limited: 42411-1871 |
| Customer Ref. | Rocklea Truck Spare: R 09.03 |
