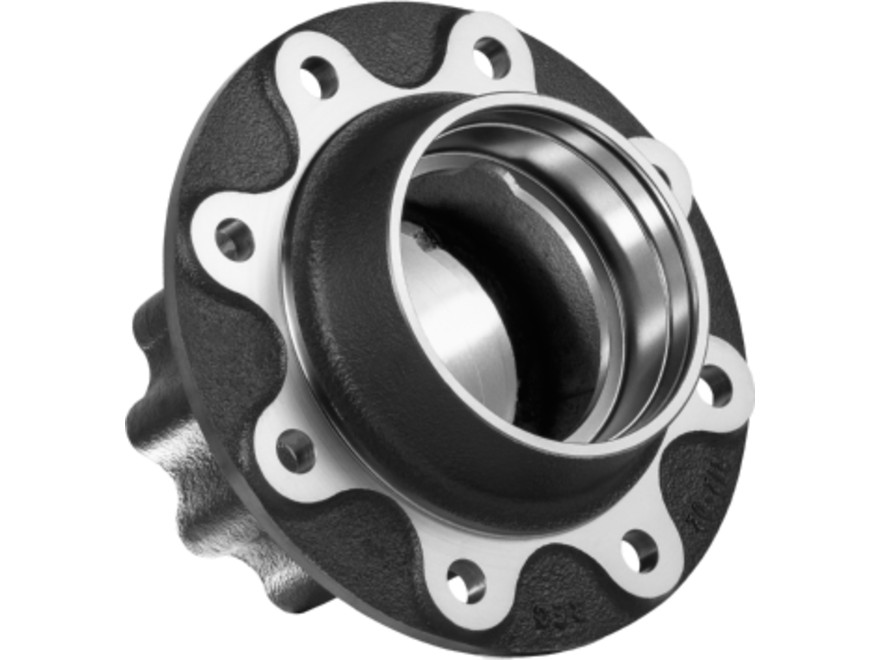

R 12.02, ISUZU wheel-end component by Rastgar Engineering
EU/Japanese Wheel Hubs

Wheel Hub

R 12.02
Brand ISUZU
Rastgar No. R 12.02
OEM Number 1423111040
Application FTS / FTR / MT
Front / Rear Rear
Material FCD-480
Request a Quote

Dimension Reference

Front hub dimension reference diagram Rear hub dimension reference diagram
ABS A [mm] B [mm] C [mm] D [mm] E [mm]
✗ 16017022237.5341

Technical Specifications

Outer DiameterPCDNo. of HolesInner BearingOuter BearingAssembly HeightSurface Coating
3412858170160237.5RED OXIDE

Comparison Numbers

TypeRef. No.
OEM / Cross Ref. 1423111040
Customer Ref. Ghandhara Industries Limited: 1423111040
