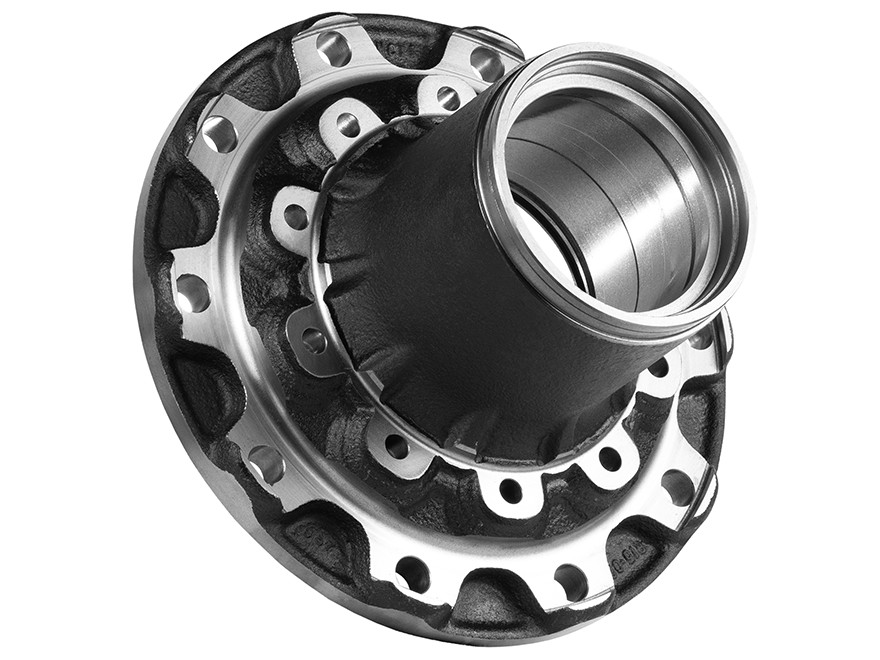

EU/Japanese Wheel Hubs
Wheel Hub
R 15.02
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.02 |
| OEM Number | A0003502335 |
| Cross Reference | 9463562601 |
| Application | TE4 / TE5 / TL4 / TL5 |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | UNITISED BEARING140 | UNITISED BEARING140 | 22 | 225.5 | 382 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 382 | 335 | 10 | UNITISED BEARING140 | UNITISED BEARING140 | 225.5 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | A0003502335 |
| Cross Ref. | 9463562601 |
| Customer Ref. | 3G Truck & Trailer Parts Ltd: AH0160 |
| Customer Ref. | Fersa Bearings S.A.: 15100/400001 |
| Customer Ref. | Fersa Bearings S.A.: 41310026101000 |
| Customer Ref. | Universal Components U.K Limited: MRHB0016 |
| Product Ref. | R 15.02 G00007|Wheel Hub Assembly |
