EU/Japanese Wheel Hubs

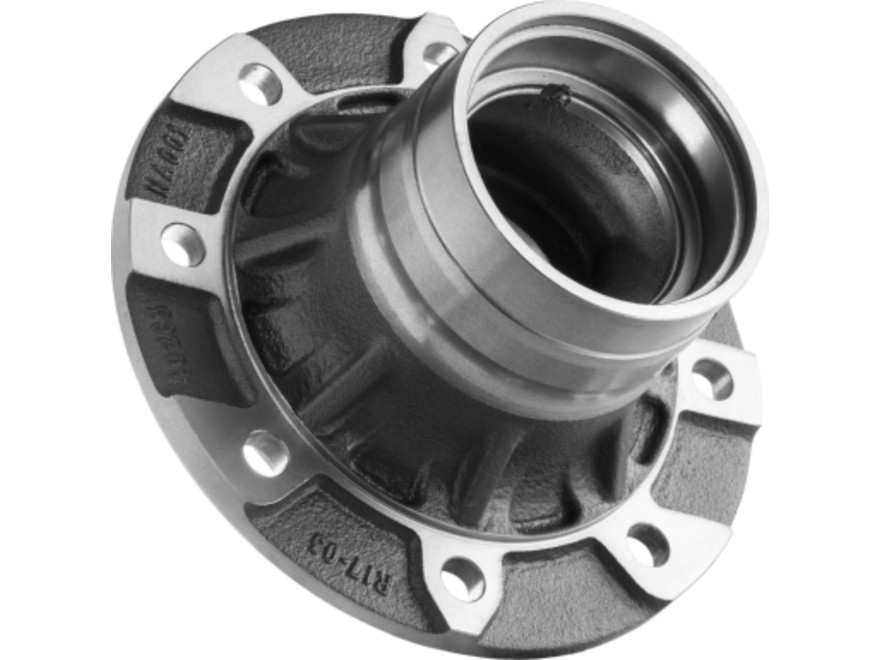

Wheel Hub
R 17.03
| Brand | NISSAN |
|---|---|
| Rastgar No. | R 17.03 |
| OEM Number | 40203-90164 |
| Cross Reference | 40203-NA001 |
| Application | PKD311 / PKD 411 / SP210 / CWM454HT / CPB12 |
| Front / Rear | Front |
| Material | FCD-500 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 120 | 140 | 22.15 | 179 | 340 |
Technical Specifications
| Outer Diameter | Length | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|---|
| 340 | 340 | 285 | 8 | 140 | 120 | 179 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 40203-90164 |
| Cross Ref. | 40203-NA001 |
| Customer Ref. | Ghandhara Nissan Limited: 40203-90163 |
