WHEEL HUBS

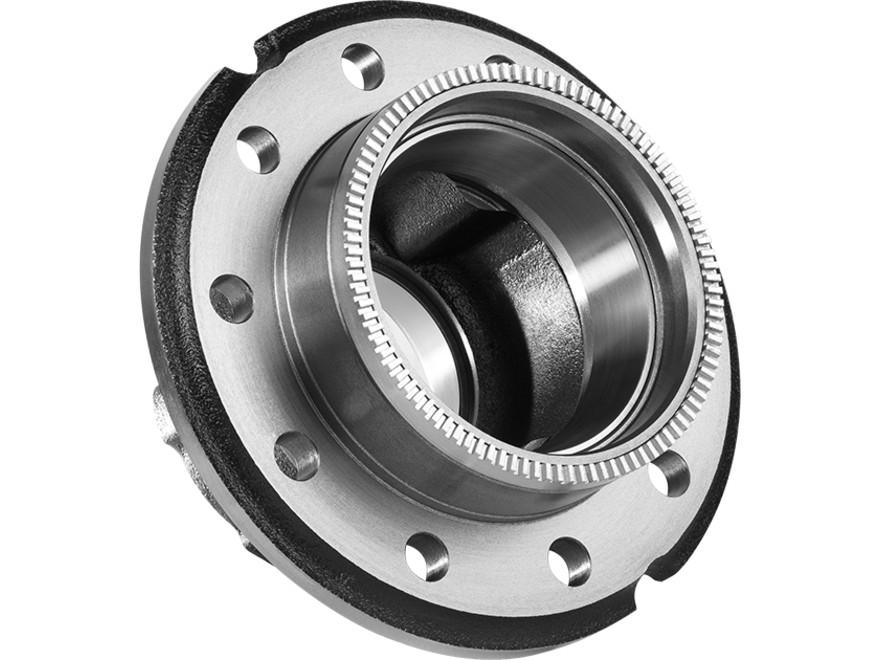

Wheel Hub
R 24.09
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.09 |
| OEM Number | 1051 ABS |
| Cross Reference | 22062 |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 122.2 | 147 | 20 | 179.324 | 282 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 282 | 222.25 | 10 | 147 | 122.2 | N | 179.324 | BLACK AIR DRYING | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1051 ABS |
| Cross Ref. | WEBB : 2665 |
| Cross Ref. | DANA : 22062 |
| Customer Ref. | La Rue Enterprises: 62688 |
| Customer Ref. | PDC-USA |
| Customer Ref. | Fleet Pride Dressed Axle Grapevine: 2665 PA-bulk |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | B 44.02|Wheel Hub |
| Product Ref. | R 24.09 100107|Wheel Hub Assembly |
