EU/Japanese Wheel Hubs

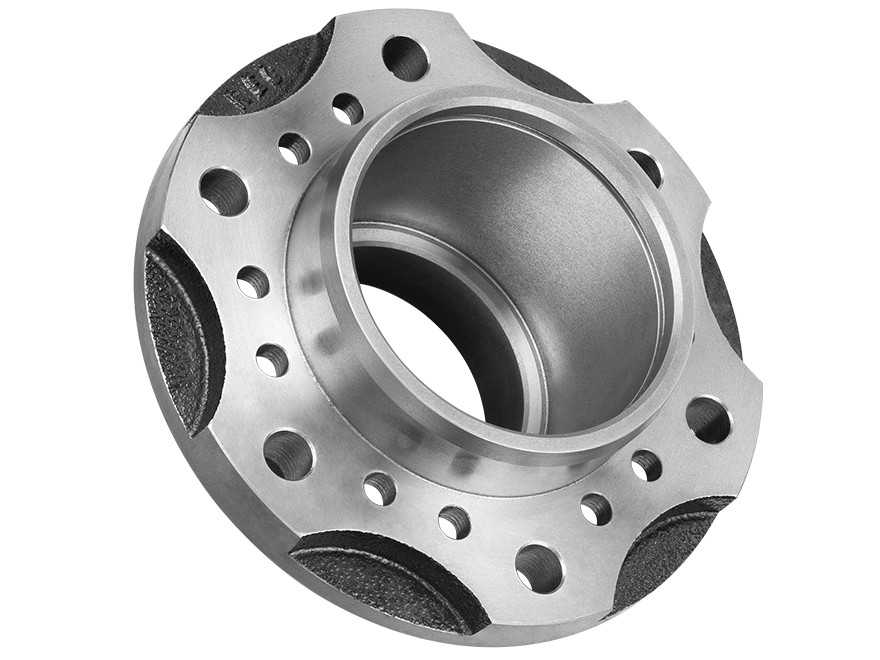

Wheel Hub
R 04.09
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.09 |
| OEM Number | 1703809 |
| Cross Reference | 40053852 |
| Application | LF45 |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | UNITIZED Bearing 130 | UNITIZED Bearing 130 | 18.9 | 141 | 247.5 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 247.5 | 205 | 6 | UNITIZED Bearing 130 | UNITIZED Bearing 130 | 141 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1703809 |
| Cross Ref. | 40053852 |
| Customer Ref. | Universal Components U.K Limited: DFHB0025 |
| Product Ref. | R 04.09 D00007|Wheel Hub |
| Product Ref. | R 04.09 D00007|Wheel Hub Assembly |
