EU/Japanese Wheel Hubs

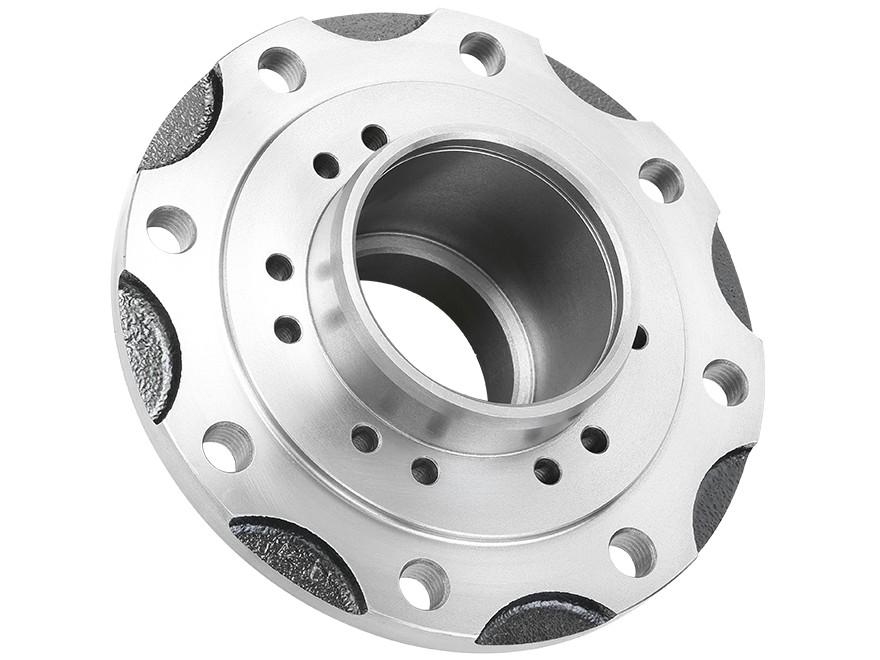

Wheel Hub
R 04.16
| Brand | DAF |
|---|---|
| Rastgar No. | R 04.16 |
| OEM Number | 1703813 |
| Application | LF - FA |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | UNITIZED Bearing 130 | UNITIZED Bearing 130 | 21 | 141.1 | 316.2 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 316.2 | 275 | 8 | UNITIZED Bearing 130 | UNITIZED Bearing 130 | 141.1 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 1703813 |
| Product Ref. | R 04.16 D00007|Wheel Hub Assembly |
| Product Ref. | R 04.16 D00007|Wheel Hub |
