EU/Japanese Wheel Hubs

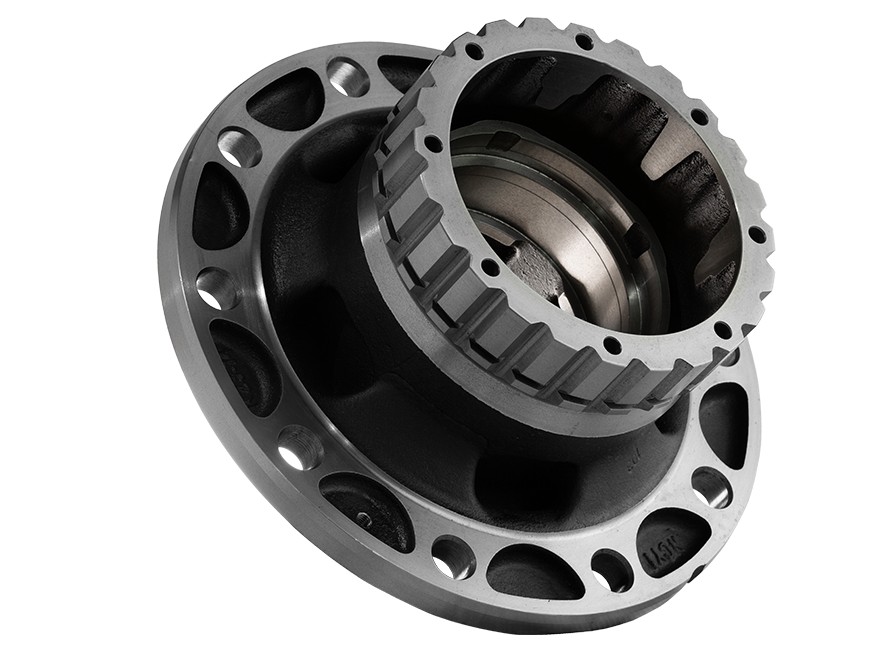

Wheel Hub
R 23.14
| Brand | VOLVO |
|---|---|
| Rastgar No. | R 23.14 |
| OEM Number | 85107752 |
| Cross Reference | 1026662 , 20517168 , 20819826 , 85109244 |
| Application | FH/FM/FMX/NH 9/10/11/12/13/16 FH 12 2001-2005, FH 16 2003-2006, FM 9 2001-2005, FM 12 2001-2005, FH/FM 2005-, FMX |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 148 | 148 | 25 | 226 | 384 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 384 | 335 | 10 | 148 | 148 | 226 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 85107752 |
| Cross Ref. | 1026662 |
| Cross Ref. | 85109244 |
| Cross Ref. | 20819826 |
| Cross Ref. | 20517168 |
| Customer Ref. | Fersa Bearings S.A.: 41310160101000 |
| Customer Ref. | Fersa Bearings S.A.: F 400030 |
| Product Ref. | D 23.01|Wheel Hub |
| Product Ref. | R 23.14 900507|Wheel Hub |
| Product Ref. | R 23.14 900507|Wheel Hub Assembly |
