EU/Japanese Wheel Hubs

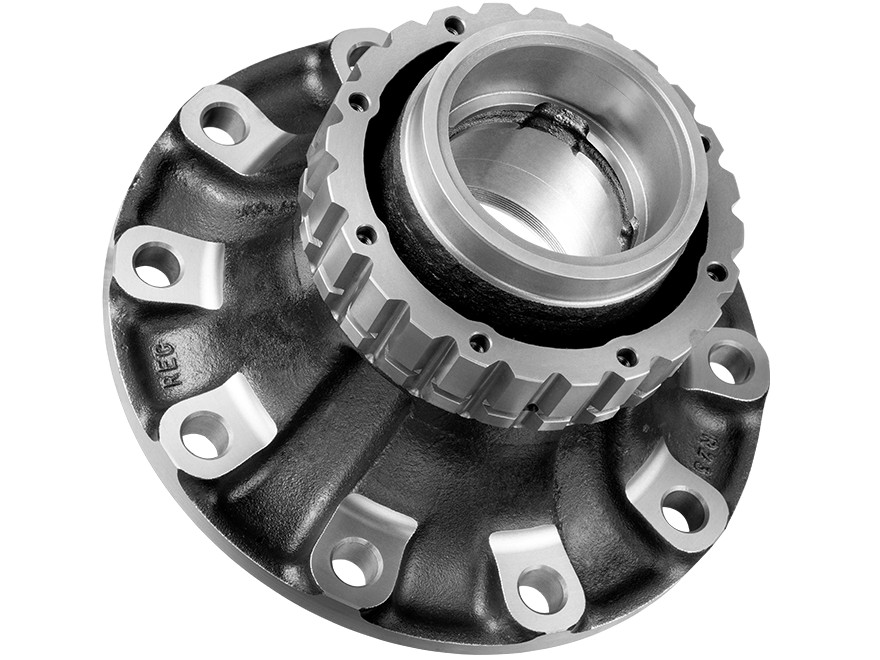

Wheel Hub
R 23.18
| Brand | VOLVO |
|---|---|
| Rastgar No. | R 23.18 |
| OEM Number | 85111794 |
| Cross Reference | 3092719 , 3988831 , 85101818 , 85105693 , 85114471 |
| Application | FM 7 1998-2001, FH 12 1998-2005, FH 16 1998-2003, FM 10, FM 12 1998-2005 |
| Front / Rear | Front |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 125 | 125 | 27 | 222.25 | 384 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 384 | 335 | 10 | 125 | 125 | 222.25 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 85111794 |
| Cross Ref. | 85101818 |
| Cross Ref. | 3988831 |
| Cross Ref. | 85105693 |
| Cross Ref. | 85114471 |
| Cross Ref. | 3092719 |
| Product Ref. | D 23.01|Wheel Hub |
| Product Ref. | R 23.18 900507|Wheel Hub |
| Product Ref. | R 23.18 900507|Wheel Hub Assembly |
