American Wheel Hubs

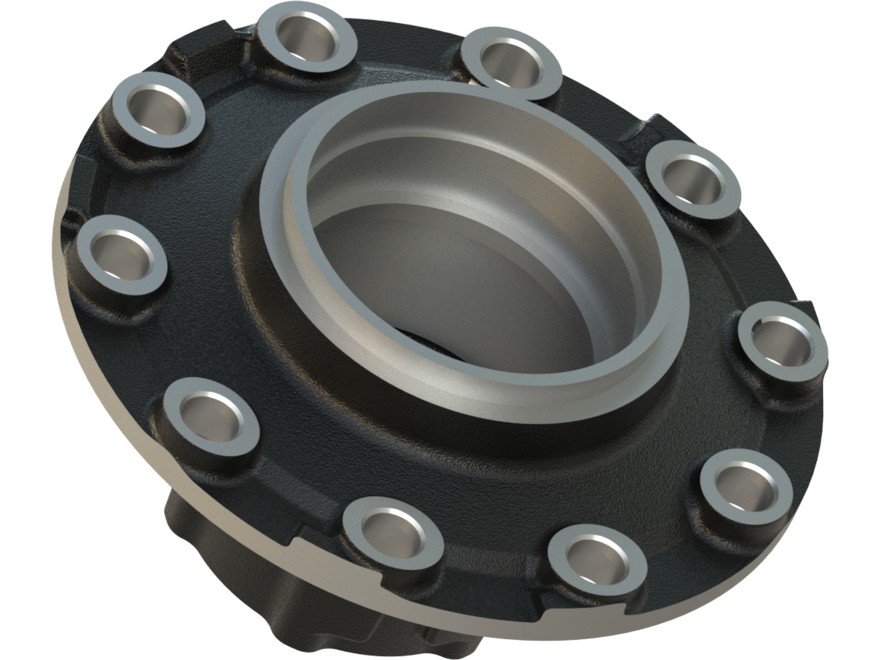

Wheel Hub
R 24.15
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.15 |
| Cross Reference | 10-00106-101 , 10083937 , 11-0656-71 , HT 794J , SVC-01025T |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 122.2 | 147 | 24.6 | 181.3 | 327 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 327 | 285.75 | 10 | 147 | 122.2 | N | 181.3 | Black Powder Coated | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2023 |
| Cross Ref. | CONMET : 10083937 |
| Cross Ref. | WEBB : 2023 |
| Cross Ref. | WALTHER : 10-00106-101 |
| Cross Ref. | GUNITE : HT 794J |
| Cross Ref. | KIC : SVC-01025T |
| Cross Ref. | DAYTON : 11-0656-71 |
| Customer Ref. | Fersa Bearings S.A.: AFO F 400065/ 41310302101000 |
