American Wheel Hubs

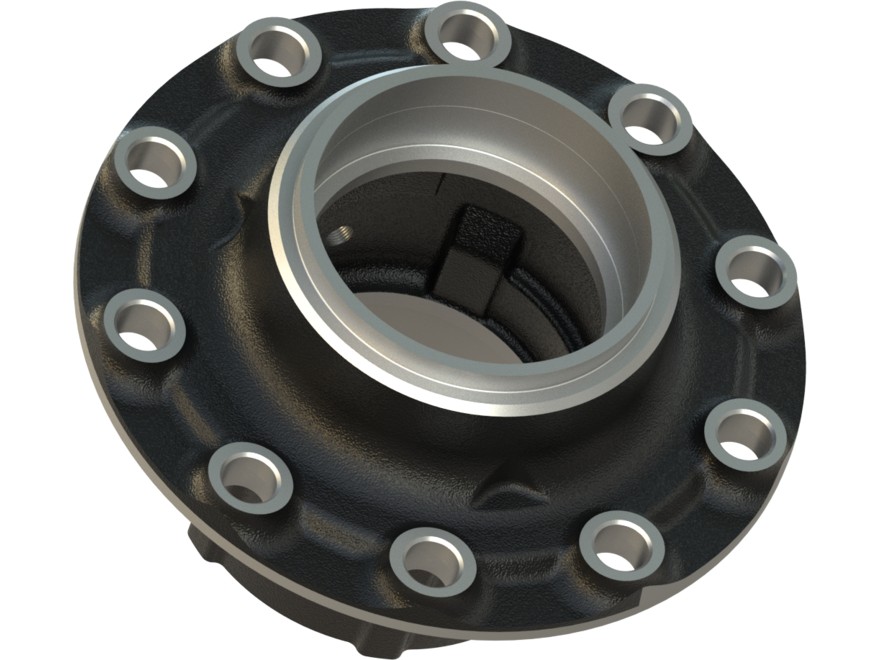

Wheel Hub
R 24.16
| Brand | WEBB |
|---|---|
| Rastgar No. | R 24.16 |
| Cross Reference | 01043 , 04-15968-129 , 10-00161-101 , 10082231 , 10082256 , HT 799J |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 152.4 | 152.4 | 24.6 | 205 | 329 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 329 | 285.75 | 10 | 152.4 | 152.4 | P | 205 | BLACK AIR DRYING | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2343 |
| Cross Ref. | WEBB : 2343 |
| Cross Ref. | CONMET : 10082231 |
| Cross Ref. | 10082256 |
| Cross Ref. | WALTHER : 10-00161-101 |
| Cross Ref. | GUNITE : HT 799J |
| Cross Ref. | KIC : 01043 |
| Cross Ref. | ARVIN MERITOR : 04-15968-129 |
