EU/Japanese Wheel Hubs

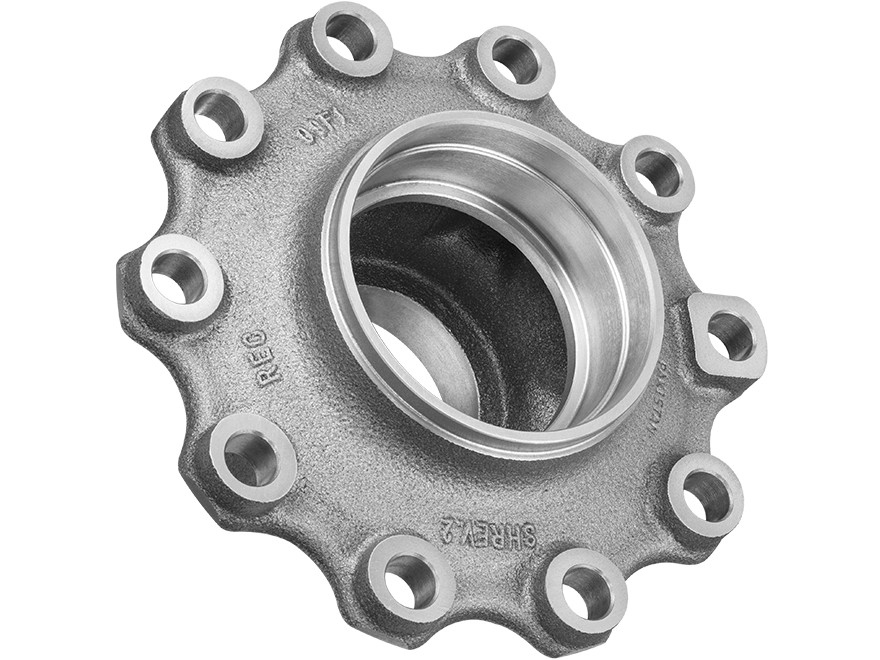

Wheel Hub
R 25.02
| Brand | RASTGAR |
|---|---|
| Rastgar No. | R 25.02 |
| Cross Reference | 01025 , 04-15984-102 , 10-00106-101 , 10082227 , 10082252 , 10083937 , HT 794J , HT 794RC , HT 794RD |
| Application | Trailer |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 122.25 | 147 | 24.6 | 179.3 | 327 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 327 | 285.75 | 10 | 147 | 122.25 | 179.3 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2023 |
| Cross Ref. | CONMET : 10082227 |
| Cross Ref. | 10082252 |
| Cross Ref. | 10083937 |
| Cross Ref. | ARVIN MERITOR : 04-15984-102 |
| Cross Ref. | KIC : 01025 |
| Cross Ref. | GUNITE : HT 794J |
| Cross Ref. | HT 794RC |
| Cross Ref. | HT 794RD |
| Cross Ref. | WALTHER : 10-00106-101 |
| Cross Ref. | WEBB : 2023 |
| Customer Ref. | Rastgar: R 25.02 |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | B 44.02|Wheel Hub |
| Product Ref. | R 25.02 100117|Wheel Hub |
