EU/Japanese Wheel Hubs

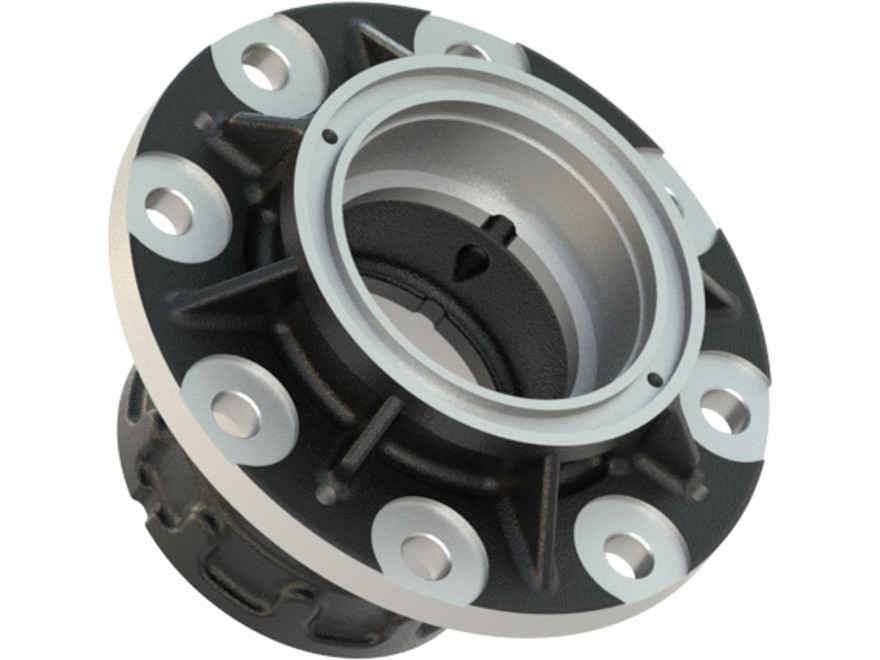

Wheel Hub
R 13.01
| Brand | LEYLAND |
|---|---|
| Rastgar No. | R 13.01 |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-400-15 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 139.6 | 152.30 | 23 | 197 | 318 |
Technical Specifications
| Outer Diameter | Length | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|---|
| 318 | 318 | 275 | 8 | 152.30 | 139.6 | 197 | RED OXIDE |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | R 13.01 |
| Customer Ref. | Auto Global: Leyland RR Hub |
