EU/Japanese Wheel Hubs

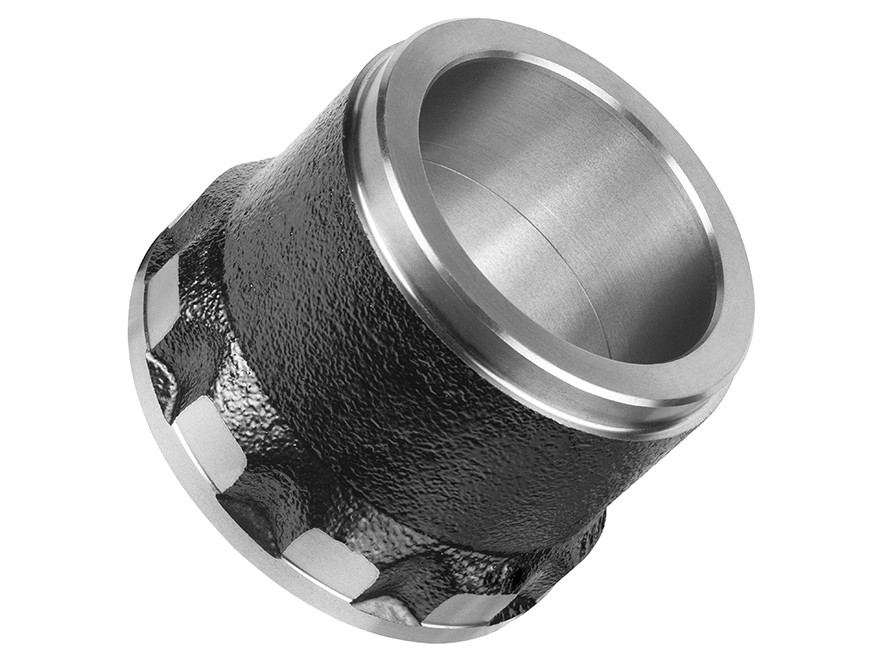

Wheel Hub
R 15.11
| Brand | MERCEDES |
|---|---|
| Rastgar No. | R 15.11 |
| OEM Number | 9433301225 |
| Cross Reference | 0003300725 , 9433301125 , 9433301525 , 9433340701 |
| Application | AXOR/ACTROS |
| Front / Rear | Front |
| Material | EN-GJS-600-3 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | UNITISED BEARING 140 | UNITISED BEARING 140 | M20x1.5 | 142.5 | 199 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 199 | 168 | 10 | UNITISED BEARING 140 | UNITISED BEARING 140 | 142.5 | Black Powder Coated |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 9433301225 |
| Cross Ref. | 9433301125 |
| Cross Ref. | 9433301525 |
| Cross Ref. | 0003300725 |
| Cross Ref. | 9433340701 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: UMC-4962 |
| Customer Ref. | Fersa Bearings S.A.: F 400041 |
| Customer Ref. | Fersa Bearings S.A.: 41310198101000 |
| Product Ref. | R 15.11 D00007|Wheel Hub Assembly |
