EU/Japanese Wheel Hubs

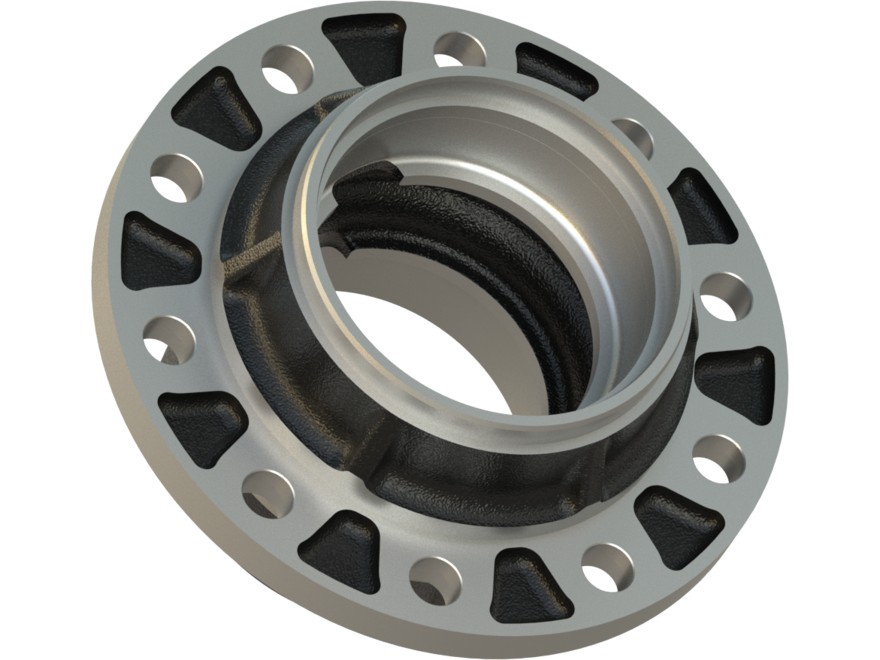

Wheel Hub
R 22.03
| Brand | TRAILER HUBS |
|---|---|
| Rastgar No. | R 22.03 |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 132 | 132 | 20 | 157 | 265 |
Technical Specifications
| Outer Diameter | Length | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|---|
| 265 | 265 | 225 | 10 | 132 | 132 | 157 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | R 22.03 |
| Customer Ref. | Gheysen & Verpoort: GV12023 |
