EU/Japanese Wheel Hubs

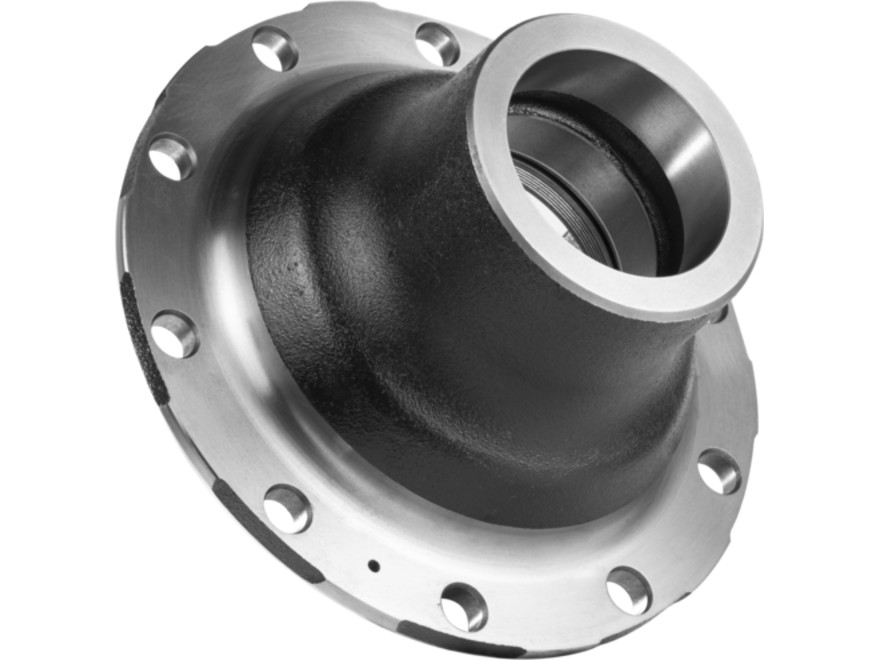

Wheel Hub
R 35.02
| Brand | SCANIA |
|---|---|
| Rastgar No. | R 35.02 |
| OEM Number | 2290532 |
| Cross Reference | 1371596 , 1382774 , 1414154 , 1868674 , 2085471 |
| Application | 4, 5, 6 SERIES, P,R CAB |
| Front / Rear | Front |
| Material | EN-GJS-500-7 |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✗ | 127 | 127.2 | 24 | 205 | 375 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 375 | 335 | 10 | 127.2 | 127 | 205 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2290532 |
| Cross Ref. | 1868674 |
| Cross Ref. | 2085471 |
| Cross Ref. | 1371596 |
| Cross Ref. | 1382774 |
| Cross Ref. | 1414154 |
| Customer Ref. | Bosung Auto Part: R 35.02 |
| Customer Ref. | Complete Hub Technologies: R 35.02 |
| Customer Ref. | DESERT FACE INTERNATIONAL FZCO: USC-2270 |
| Customer Ref. | Fersa Bearings S.A.: F 400015 |
| Customer Ref. | JSP Motor: R 35.02 |
| Customer Ref. | Koivunen Oy: R 35.02 |
| Customer Ref. | Stud Extract Limited: R 35.02 |
| Product Ref. | B 35.01|Wheel Hub |
| Product Ref. | R 35.02 G00007|Wheel Hub Assembly |
