EU/Japanese Wheel Hubs

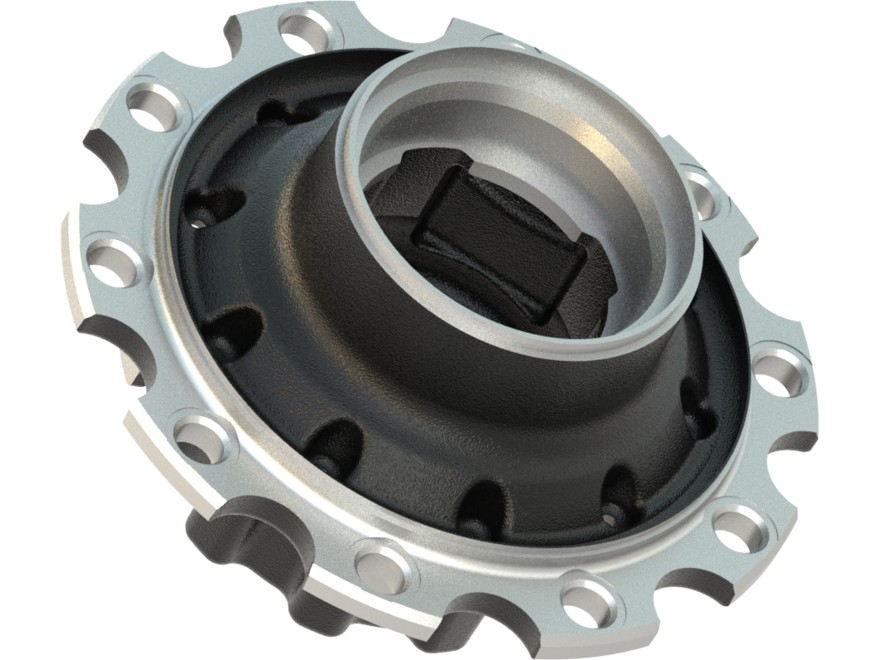

Wheel Hub
R 35.04
| Brand | SCANIA |
|---|---|
| Rastgar No. | R 35.04 |
| OEM Number | 2290538 |
| Cross Reference | 1255348 , 1942754 , 337565 |
| Application | 4, 5, 6 SERIES, P,R CAB |
| Front / Rear | Rear |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 147 | 147 | 24 | 213 | 374 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Assembly Height | Surface Coating |
|---|---|---|---|---|---|---|
| 374 | 335 | 10 | 147 | 147 | 213 | BLACK AIR DRYING |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | 2290538 |
| Cross Ref. | 1942754 |
| Cross Ref. | 337565 |
| Cross Ref. | 1255348 |
| Customer Ref. | Complete Hub Technologies: R 35.04 |
| Customer Ref. | Koivunen Oy: R 35.04 |
| Customer Ref. | Stud Extract Limited: R 35.04 |
| Customer Ref. | Universal Components U.K Limited: SCHB0012 |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | R 35.04 200107|Wheel Hub Assembly |
