American Wheel Hubs

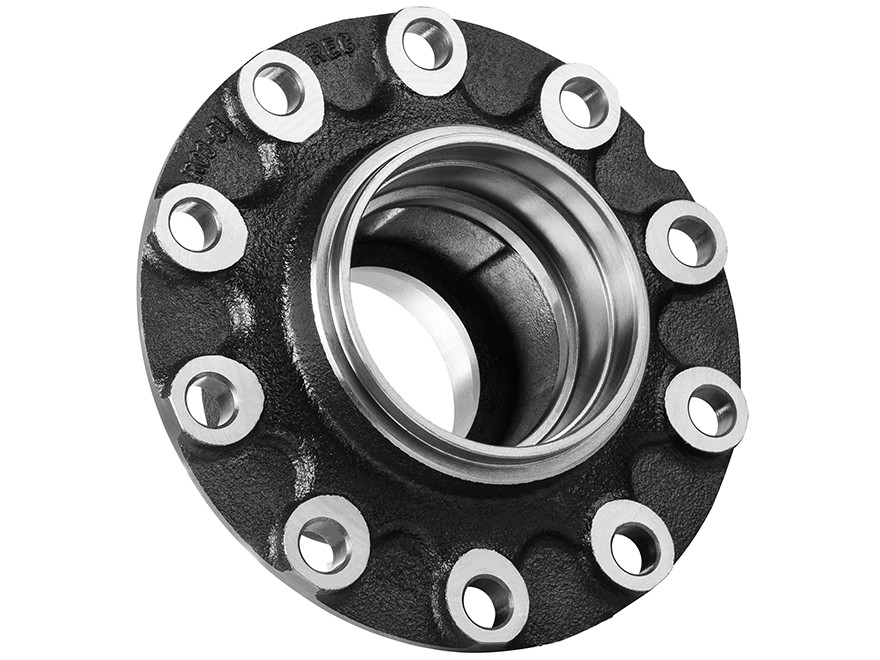

Wheel Hub
R 08.01
| Brand | GUNITE |
|---|---|
| Rastgar No. | R 08.01 |
| OEM Number | HT794J |
| Cross Reference | 01025 , 04-15984-102 , 10082227 , 10082252 , 10083937 , HT 794J , HT 794RC , HT 794RD |
| Application | N/A |
| Front / Rear | Rear |
| Material | EN-GJS-450-10 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 122.25 | 146.975 | 24.6 | 181.3 | 326 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 326 | 285.75 | 10 | 146.975 | 122.25 | N | 181.3 | BLACK AIR DRYING | Trailer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | HT794J |
| Cross Ref. | ARVIN MERITOR : 04-15984-102 |
| Cross Ref. | WEBB: 2023 |
| Cross Ref. | CONMET : 10082227 |
| Cross Ref. | 10082252 |
| Cross Ref. | 10083937 |
| Cross Ref. | GUNITE : HT 794J |
| Cross Ref. | HT 794RC |
| Cross Ref. | HT 794RD |
| Cross Ref. | KIC : 01025 |
| Customer Ref. | La Rue Enterprises: HT795J |
| Customer Ref. | Rocklea Truck Spare: R 08.01 |
| Product Ref. | B 44.01|Wheel Hub |
| Product Ref. | R 08.01 100117|Wheel Hub |
| Product Ref. | R 08.01 100117|Wheel Hub Assembly |
