American Wheel Hubs

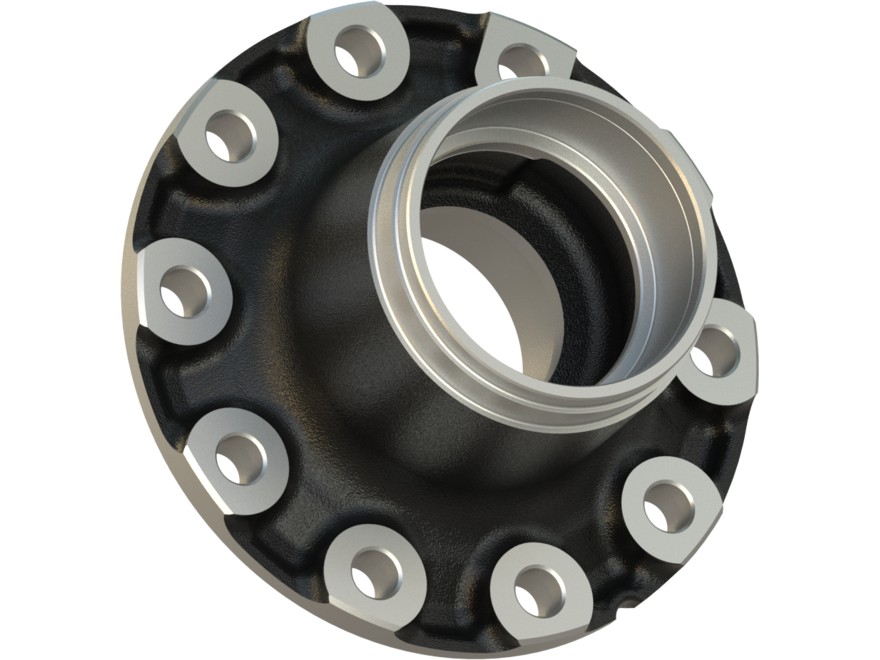

Wheel Hub
R 08.04
| Brand | GUNITE |
|---|---|
| Rastgar No. | R 08.04 |
| OEM Number | HF805K |
| Cross Reference | 10033315 , 150.253 , HF 707K , HF 805K |
| Application | N/A |
| Front / Rear | Front |
| Material | EN-GJS-500-7 |
| ABS | Compatible |
Dimension Reference
| ABS | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] |
|---|---|---|---|---|---|
| ✓ | 123.73 | 149.16 | 24.6 | 190.5 | 330 |
Technical Specifications
| Outer Diameter | PCD | No. of Holes | Inner Bearing | Outer Bearing | Spindle Type | Assembly Height | Surface Coating | Kit Description |
|---|---|---|---|---|---|---|---|---|
| 330 | 285.75 | 10 | 149.16 | 123.73 | FL | 190.5 | BLACK AIR DRYING | Steer Application |
Comparison Numbers
| Type | Ref. No. |
|---|---|
| OEM / Cross Ref. | HF805K |
| Cross Ref. | CONMET : 10033315 |
| Cross Ref. | AUTOMANN : 150.253 |
| Cross Ref. | GUNITE : HF 805K |
| Cross Ref. | HF 707K |
| Customer Ref. | La Rue Enterprises: HF3687K |
| Product Ref. | R 08.04 100117|Wheel Hub Assembly |
